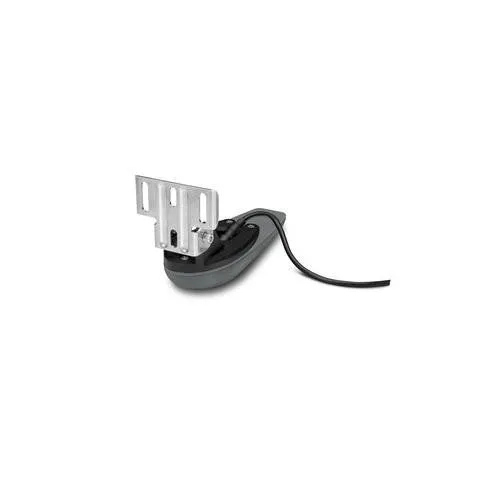

Garmin Garmin GT20-TM — Transom Mount DownVü 500 W (CHIRP 455/800 kHz) Traditional 500 W (77/200 kHz) Transducer with Temp (8-pin)
Model: 010-01960-01UPC: 753759152765
Get ultra-clear sonar pictures of objects, structure and fish that pass below your boat with this all-in-one 8-pin transducer.
This 20 ft transducer cable with built-in fast response temperature sensor has a power rating of 500 W; a depth of 1,900 ft (traditional) and 750 ft (DownVü); an operating frequency of 77/200 kHz (traditional) and 455 (DownVü); and a 0 to 70 transom angle.
Transducer comes with transom and trolling motor mounts, and installation instructions. Follow the instructions carefully to avoid damaging your boat.
Specifications| Dimensions | 5.9 x 2.0 x 0.9 in (150 x 52 x 22 mm) |
| Freguencies | Traditional: 77/200 kHz DownVü: CHIRP 435-475 kHz and CHIRP 800-840 kHz |
| Transmit Power | Traditional: 500 W DownVü: 500 W |
| Maximum depth | Traditional: 1,900 ft DownVü: 750 ft |
| Beam Width (°) LF/HF (-3dB): | Traditional: 45/15 DownVü: 2.5x53 |
| Water Temperature | Yes |
| Cable length | 20ft |
